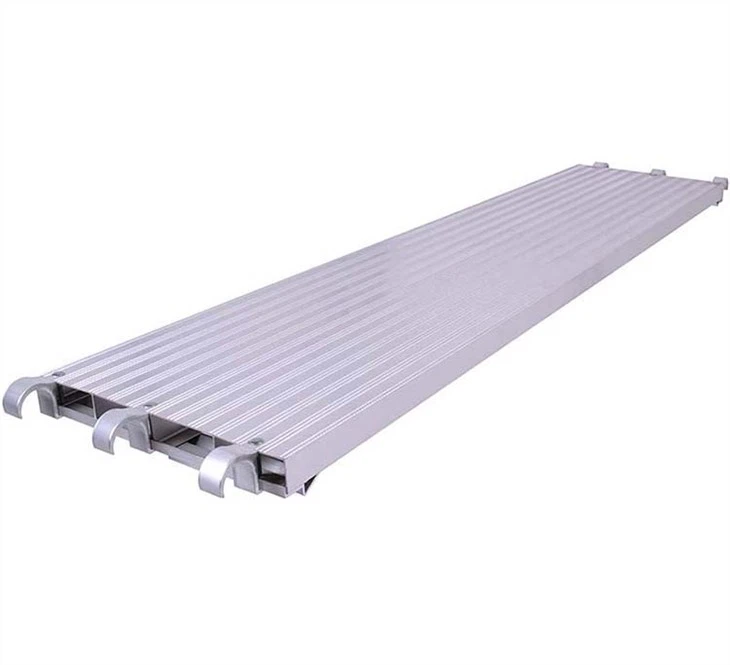

The scaffold deck we offer features three broad hooks that can be easily replaced and slipped over the top horizontal pipe on your scaffolding structure. Made of aluminum, these deck/planks can be swiftly assembled and conveniently transported. Let me generate a highly similar content by rearranging the above information:
Our easily transportable aluminum scaffold deck is designed with three replaceable broad hooks. These hooks can be conveniently slipped over the top horizontal pipe of your scaffolding structure. With their quick assembly feature, these sturdy aluminum deck/planks are a practical choice for your scaffolding needs.
The Topstar All-Aluminum scaffold decks are specifically designed for outdoor use and offer a much stronger and firmer footing compared to conventional wood planks. Despite its robust construction, these decks are surprisingly lightweight and have a reduced level of flexibility. With a weight capacity of 75 lbs. per square foot, they provide a secure and stable work platform for any scaffolding structure. These versatile planks can be incorporated into either supported or suspended scaffolding systems, making them suitable for various construction projects.
|
Aluminum Scaffold Deck |
|
|
Material: |
Aluminum Alloy 6082-T6/6063-T5/6061-T6 |
|
Style |
American |
|
Size |
480*76mm |
|
Capacity |
75lbs/square ft |
|
Load |
uniform loading:2300lbs |
|
Surface treatment: |
Non-skid surface |
|
Available Size |
||||
|
Width(inch) |
Length(inch) |
Length(mm) |
Weight(kgs) |
Weight(kgss) |
|
19-1/4” |
10’ |
3048mm |
17.75kgs |
39.13lbs |
|
19-1/4” |
8’ |
2438.4mm |
14.54kgs |
32.05lbs |
|
19-1/4” |
7’ |
2133.6mm |
12.94kgs |
28.53lbs |
|
19-1/4” |
6’ |
1828.8mm |
11.34kgs |
25.00lbs |
|
19-1/4” |
5’2” |
1572mm |
10.00 kgs |
22.05lbs |
Constructed from durable aluminum, this walk plank scaffold boasts a trio of replacement hooks that are wide and secure. The entire plank is composed of aluminum, ensuring a lightweight yet sturdy design for all of your construction needs.
The aluminum trusses located below the scaffold board significantly increase the load capacity to a maximum of 75 lbs per foot.
3. Wind latches are included with the walk plank.
To provide optimum traction, the top surface of the scaffold board has been designed with maximum grip in mind.
Aluminum scaffold boards weigh less than metal planks, making them a more lightweight option.
6. 75 pounds per square foot heavy duty rating.
Q1.What is minimum width of plank?
Q2.What is the tolerance on width?
The tolerance on the width of a scaffold plank shall be −0,+5mm.
Q3.What’s the working load limit?
Q5.What types of plank you produce?
1.Steel board without hook
2.Steel Catwalk(with hook)
3.Plywood plank
4.Aluminum plank
